- Comes with Range Detection and Fire Detection
- Detect wildlife with complete darkness
- 50HZ frame rate with 4 level digital zoom
- Battery Life: >9 h (Wi-Fi hotspot off, @25°C)
- Micro SD card capacity (Max. 256G)
$599.99
SAVE $100.00 (14%)
SAVE $100.00 (14%)
Frequently Bought Together
Features
See the heat with the Thermal Monocular Camera. Rather than visible light, thermal cameras use different levels of infrared energy or heat to create an image. This allows it to easily detect people, animals, and objects in all kinds of environments, including complete darkness, haze, or glaring light.
Easily see the heat signatures of animals through dense foliage and adverse weather, even in complete darkeness.
Perfect for campers and hikers. Thermal cameras will help you find your way in the dark and detect animals.
There is no hiding from thermal cameras. They can see through bad weather, dense foliage and woods.
A great way to spot overheating with electrical components or hotspots in machines.
Thermal cameras allow firefighters to see through smoke, helping to detect the body heat of people.
See underlying building issues, track moisture, and discover hot zones inside residential and commercial buildings.
Measure body temperature and search for underlying issues in joints, veins, and the skin of both people and animals.
Portable & Durable
A small, lightweight, and IP67 weatherproof design, along with a very low power consumption rate, make this camera an especially handy long-term outdoor tool.
Video Ranging
With its hassle-free distance measurement feature, simply mark the top and bottom of a target on the screen, and the interface will automatically display the distance of the target from the monocular.
Fire Detection
The monocular can automatically detect fires that break out in the scene and track them in real time.
Multiple Color Palettes
Choose from four different color palettes to meet your observation needs.
Iron Red
Improve the comfort of long-term observation under night conditions
Rainbow
Convenient for users to quickly identify targets
White Hot
Suitable for observing active targets
Alarm
Quickly detect the emergence of high-temperature targets
Product Compatibility
Product Specifications
| General | ||||
|---|---|---|---|---|
| Appearance | Thermal Monocular Camera | |||
| Type | Monitor | |||
| Thermal | ||||
|---|---|---|---|---|
| Detector Type | Vanadium oxide uncooled focal plane detector | |||
| Effective Pixels | 256 × 192 | |||
| Pixel Pitch | 12 μm | |||
| Spectral Range | 8 μm–14 μm | |||
| Sensitivity (NETD) | ≤50 mK@f/1.0 | |||
| Focal Length | 7.5 mm; 10 mm; 15 mm | |||
| Aperture | F1.0 | |||
| Field of View | 7.5 mm (H: 24.0°; V: 18.0°) 10 mm (H: 17.3°; V: 13.1°) 15 mm (H: 11.7°; V: 8.8°) |
|||
| Focus Control | Fixed-focal | |||
| Close Focus Distance | 7.5 mm 1 m (3.28 ft) 10 mm 2 m (6.56 ft) 15 mm 3 m (9.84 ft) |
|||
| DRI Detection Distance | Focal Length | Detection Distance | Recognition Distance | Identification Distance |
| 7.5 mm | Vehicle: 777 m (2,549.21 ft) Human: 291 m (954.72 ft) |
Vehicle: 194 m (636.48 ft) Human: 75 m (246.06 ft) |
Vehicle: 97 m (318.24 ft) Human: 37 m (121.39 ft) |
|
| 10 mm | Vehicle: 1,111 m (3,645.01 ft) Human: 416 m (1,364.83 ft) |
Vehicle: 277 m (908.79 ft) Human: 107 m (351.05 ft) |
Vehicle: 97 m (318.24 ft) Human: 53 m (173.88 ft) |
|
| 15 mm | Vehicle: 1,666 m (5,465.88 ft) Human: 625 m (2,050.52 ft) |
Vehicle: 416 m (1,364.83 ft) Human: 160 m (524.93 ft) |
Vehicle: 208 m (682.41 ft) Human: 80 m (262.47 ft) |
|
| Digital Zoom | 4 levels | |||
| Color Palettes | 4 (white hot; alarm; rainbow; iron red) | |||
| Display | |
|---|---|
| Video Compression | H.265 |
| Frame Rate | 50 Hz |
| Display Screen Dimensions | 0.2 inch |
| Resolution | 720 × 540 |
| Certification | |
|---|---|
| Certification | FCC: DHQA-ESH-P22030967B CE: 479742742-3 RCM: RCMD23245 001 UKCA: 4790742742-1, 4790742742-2, 4790742742-3, 4790742742-4 |
| Function | |
|---|---|
| Storage | Micro SD card (Max. 256G) |
| Laser Aiming | 180 m (590.55 ft), Class 2 (IEC 60825-1) |
| Intelligence | |
|---|---|
| Fire Detection | Yes |
| Cold/Hot Spot Trace | Yes |
| Port | |
| Analog Output | 1 × CVBS output |
| Wi-Fi Hotspot | Yes |
| USB | Micro USB |
| Power | |
|---|---|
| Power Supply | 5 VDC, 0.3 A or built–in battery |
| Battery Capacity Display | Yes |
| Power Consumption | <1.5 W |
| Battery Life | >9 h (Wi-Fi hotspot off, @25°C) |
| Charging Time | <3 h |
| Environment | |
|---|---|
| Operating Temperature | –20 °C to +55 °C (–4 °F to +131 °F) |
| Operating Humidity | ≤90% |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Physical Characteristics | |
|---|---|
| Protection | IP67 |
| Product Dimensions | 170.9 mm × 57.6 mm × 58.6 mm (6.73" × 2.27" × 2.31") (L × W × H) |
| Packaging Dimensions | 205 mm × 148 mm × 111 mm (8.07" × 5.83" × 4.37") (L × W × H) |
| Net Weight | 350 g (0.77 lb) |
| Gross Weight | 1 kg (2.20 lb) |
| Installation | Handheld; tripod |
| Power Adapter | Included |
| Lens | Included |
| Bracket | Optional |
| Drop Test Height | 2 m (6.56 ft) |

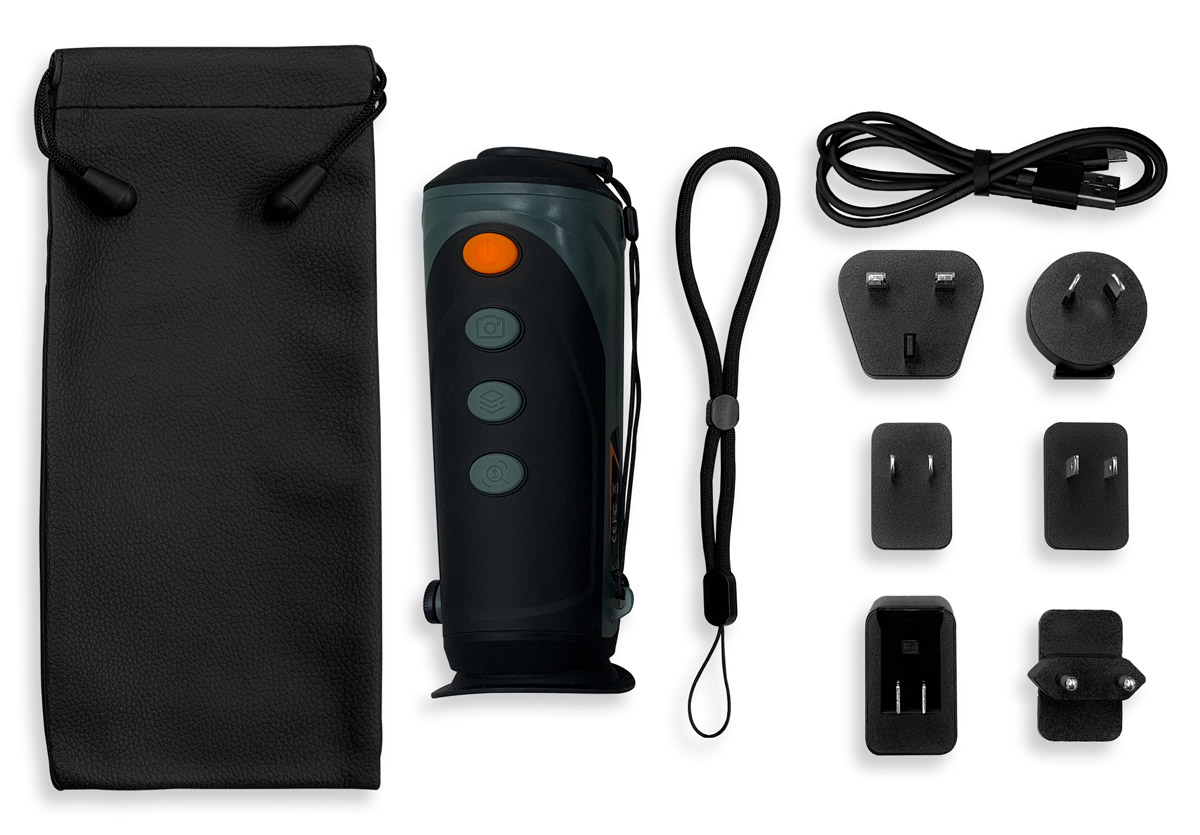

What's Included?
Package Contents:
- 1 × Thermal Monocular Camera
- 1 × USB cable
- 1 × Power adapter
- 1 × UK power plug
- 1 × US power plug
- 1 × AU power plug
- 1 × EU power plug
- 1 × Pouch
- 1 × Lanyard
- 1 × QSG insert
